 MMCS - Multi Mode Cassegrain Spectrometer
 MMCS was designed for spectral observations of faint objects at the Cassegrain focus (F/8) of the telescope ZEISS-2000. It has a modular design which allows quick transformation from its echelle to prism mode. Thus the spectrometer has wide range of resolutions from 100 to 15000 and spectral range 3700 - 8000 Å

  BASIC COMPONENTS.
  • collimator is a parabolic mirror with diameter of 75 mm and focal length 600 mm;
  • specially made (with central hole) echelle grating with 75 gr mm-1 and 63.° 5 blaze angle;
  • diffraction grating with 600 gr mm-1 and 8° blaze angle;
  • diffraction grating with 300 gr mm-1 and 4° blaze angle;
  • diffraction grating with 300 gr mm-1 and 6° blaze angle;
  • diffraction grating with 200 gr mm-1 and 28° blaze angle;
  • a 45° crown prism;
  • camera Schmidth-Cassegrain with F=150 mm;
  • lens camera with the F=180 mm;
  • detectors:
  • Wright Instruments CCD, 1242x1152 with 22.5 mk pixel;
    Wright Instruments CCD (back-illuminated), 1252x1152 with 22.5 mk pixel.

Observational Capabilities

Modes echelle (64°+4°) quasi echelle
28°+prism
classic 8°-grating classic 4°-grating
Max. Resolution 13500 3200 1200 600
Limiting Mag.,
S/N~10, Exp=1h
~12.5 ~14.5 ~15 ~16

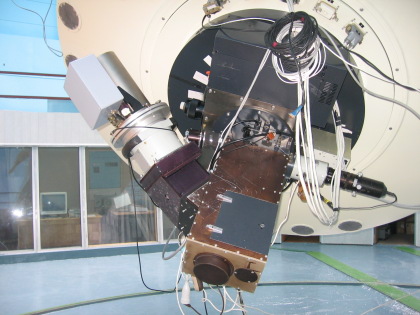

MMCS

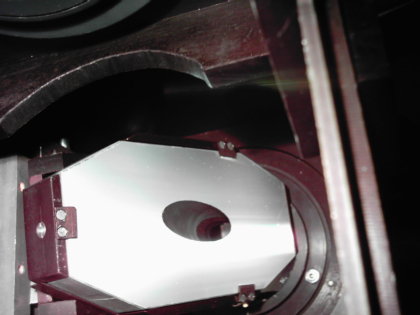

Echelle grating

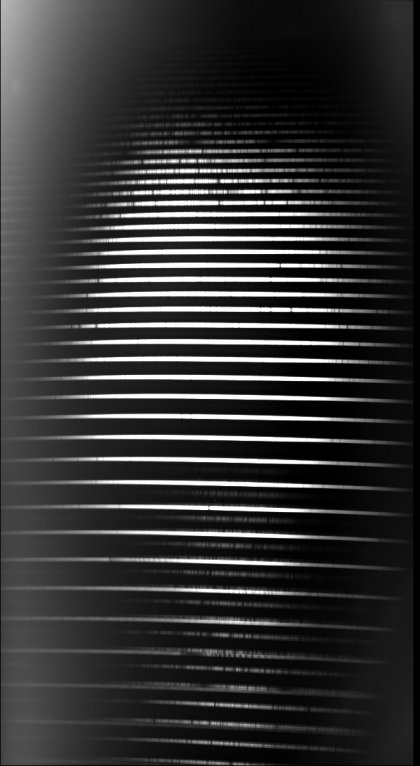

Raw echelle image R ~13000

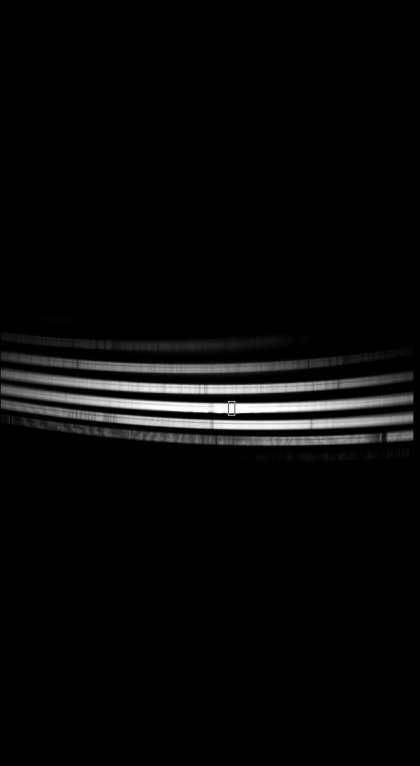

Raw image (quasi echelle) R ~3200


Spectrum with R ~13000
